Product Description
•Highly balanced reinforced frame and pallet fork
•High quality integrated casting oil cylinder
•Oil cylinder with constant flow valve ensures balanced down of goods in heavy load
•Integrated casting frame, double front wheels with strong loading capacity
Product Specification
|
model
|
CBY-11
|
|
Capacity:
|
KG
|
2000/2500/3000
|
|
Fork Width
|
MM
|
540/685
|
|
Fork Length
|
MM
|
1100/1150/1220
|
|
Single Fork Width(Width*Thickness)
|
MM
|
160*60
|
|
Max,lifting height
|
MM
|
195
|
185
|
|
Lowered fork height
|
MM
|
85
|
75
|
|
Loaded Wheel
|
MM
|
180*50
|
|
Front Wheel
|
|
Single wheel(80*93)/ double wheels
|
|
Material of wheel
|
|
Nylon/Rubber/Polyur
|
|
Net Weight
|
KG
|
65-75
|
|
Packing Qty(20 feet container)
|
SETS
|
180(fork width 550MM or less)
|
144(fork width 685MM)
|
characteristics
1.High-strength material
Made of high-quality steel, with high strength and durability, able to withstand heavy loads.
2.Surface treatment
anti-rust treatment on the surface to extend the service life.
3.Easy installation
reasonable design, easy installation, suitable for various types of forklift.
4.High safety
Through strict quality testing, to ensure the safety of use.
5.Wide range of application
suitable for a variety of working environments, especially the handling of long items.

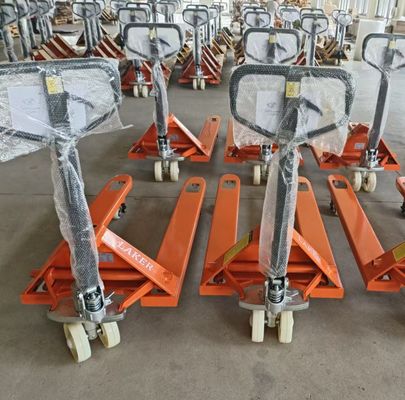

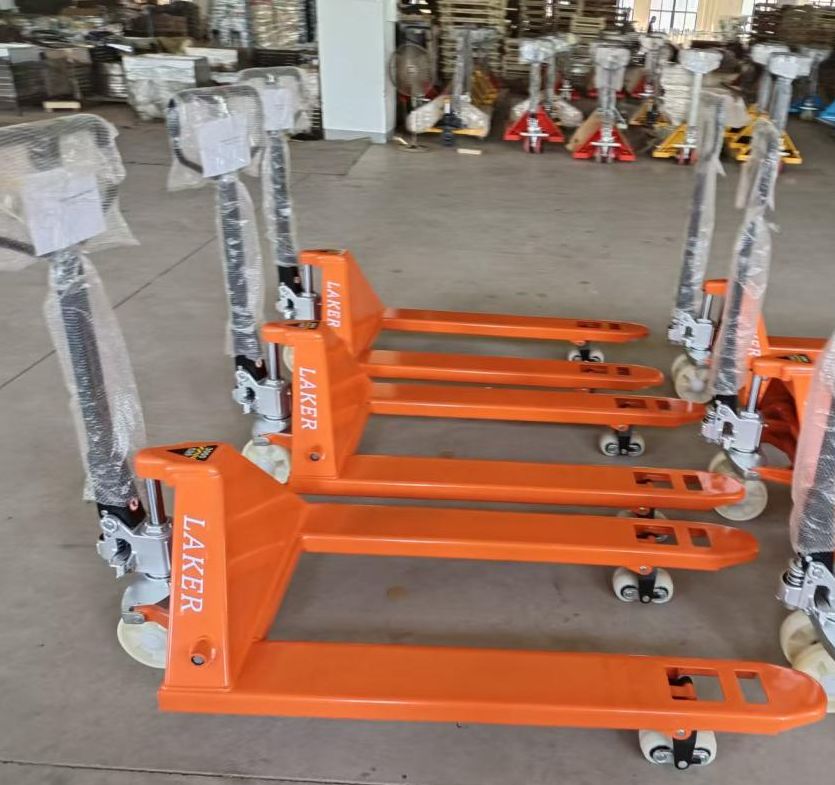

Product Display
About us
LAKER AUTO PARTS CO., LIMITED is your one-stop shop for parts and accessories for forklifts, low-speed electric vehicles, and auxiliary material handling equipment. We guarantee high-performance products at competitive prices.
Our Core Products Include:
Lead Acid Batteries for electric forklifts and vehicles.
Intelligent automatic battery chargers (industrial frequency and high frequency).
Solid tires (regular black and non-marking) for small working fields and warehouses.
Hydraulic solid tire press machines for tire mounting and dismounting.
Mobile loading ramps and fixed dock levelers for container loading.
Low-speed electric vehicles (1-3 tons) for warehouse, airport, and port delivery.
A variety of battery accessories (battery plates, gauntlets, connectors, watering systems, safety valves, vent plugs, cables, etc.).
Various golf carts and sightseeing vehicles.
At LAKER, we are committed to providing comprehensive service from the initial quote to final delivery. Our dedication to quality, expertise, and product availability has made us a trusted partner for our customers.
All forklift-related products are sourced from top manufacturers under our brands MYING and LAKER. Our skilled technicians are always available for online technical support and aftermarket solutions.
Join Us in Powering the Future!
We strive to enrich our catalog with environmentally friendly maintenance products for material handling equipment. Given the opportunity, we are eager to demonstrate our advantages and grow together, establishing a long-term and friendly business relationship with your esteemed company.
Power Your Lift, Lift Our Future—You Can Depend On Us!
